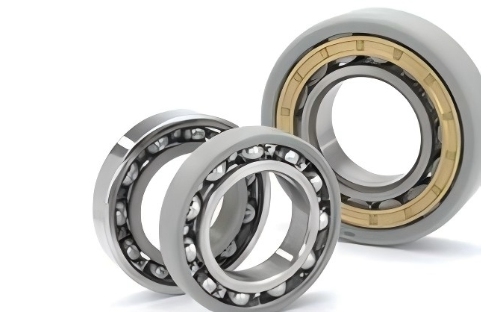

6334 M/C4VL0241 Insulated deep groove ball bearings

Deep groove ball bearings are among the most commonly used bearing types. They are designed to minimize friction, ensuring smooth operation with low noise and vibration, while also supporting high rotational speeds. These bearings can handle both radial and axial loads in any direction, are easy to install, and require less maintenance compared to other bearing types.

Description Package Information Inquiry

Insulated deep groove ball bearings 6334 M/C4VL0241, 31.14 kg Bearing mass, (170*360*72 mm), 170 mm d (Bore: diameter of the inner ring), 360 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 72 mm B (Width: nominal width of the bearing), 335000 N radial dynamic load capacity (Dyn. Cr), 378000 N radial static load capacity (Stat. Cor), 1500 r/min Maximum RPM (Speed in grease), 1900 r/min Maximum RPM (Speed in oil)

Standard Individual Package
